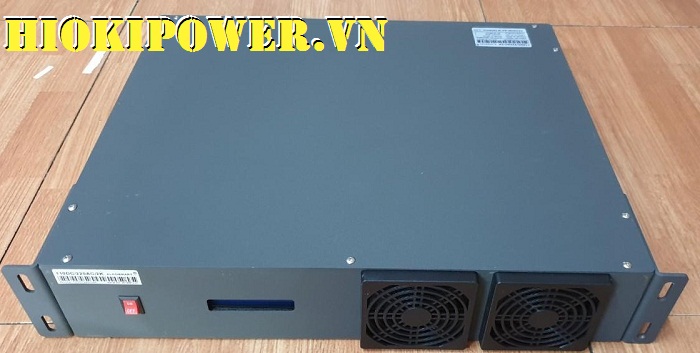

MODEL

ALK.CNVT220-40

DC OUTPUT VOLTAGE

220VDC

CURRENT RANGE

40A

RATED POWER

8000VA

VOLTAGE ADJ. RANGE

220VDC +/- 5%

AC  INPUT VOLTAGE RANGE

220VAC ( 165-265VAC ) 50HZ ( 40-70HZ )

EFFICIENCY

88%

INRUSH CURRENT

0-1 ADC

OVER LOAD

100 ~ 105% rated output power

Protection type : Shut down o/p voltage,fe-power on to recovery

OVER VOLTAGE

245VDC

Protection type : Shut down o/p voltage, re-power on to recover

OVER TEMPERATURE

80°C ±5°C (TSW1) detect on heatsink of power transistor

Protection type : Shut down o/p voltage, recovers automatically after temperature goes down

WORKING TEMP.

-20 ~ +60°C  (Refer to "Derating Curve")

WORKING HUMIDITY

20 ~ 90% RH non-condensing

STORAGE TEMP, HUMIDITY

-40 ~ +85°C , 10 ~ 95% RH

SAFETY STANDARDS

U60950-1 approved

WITHSTAND VOLTAGE

I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

ISOLATION RESISTANCE

I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC / 25°C / 70% RH

DIMENSION (H*W*D) (MM)

Rack 19 inch 2U  (88*440*320)

WEIGHT (KG)
